IBCS Trainer

A single-file HTML5 Canvas platformer (ibcs_trainer.html) that teaches IBCS chart rules level by level, embedded in a Fabric-authenticated Rayfin app. You play a data analyst who conquers bad chart types: pie charts explode, the wrong chart for a time series must be destroyed, and colorful clutter gives way to clean black-and-grey notation. It runs in an <iframe> and reports each finished play-through to the host, which persists it to a typed GameStats entity through the Rayfin data client.

IBCS Trainer 2.0 — this repo expands the trainer toward full IBCS® SUCCESS coverage: all ~98 rules become levels, organised into 7 stages (one per SUCCESS pillar) and 35 substages (one per rule group), with substage checkpoints (clear a substage to start from it). A final-boss capstone is followed by an ISO 24896 memory room.

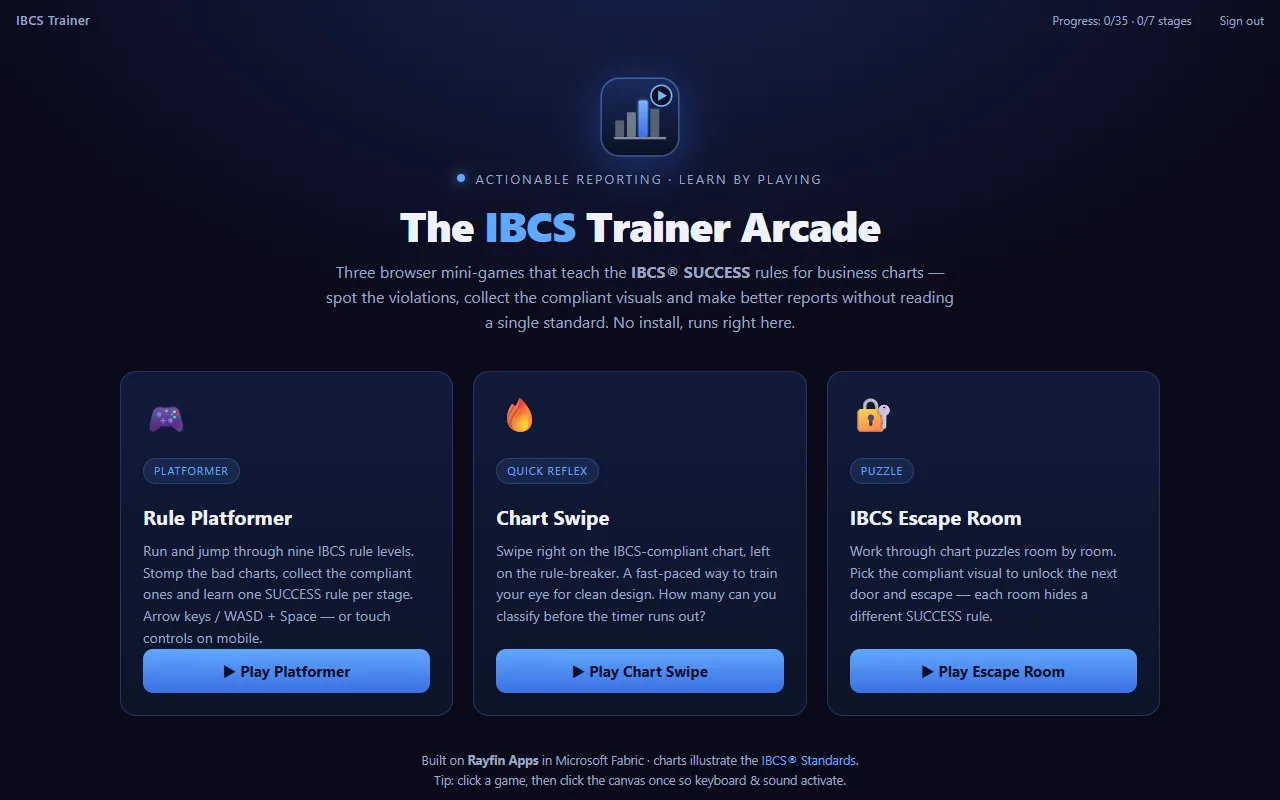

Three games, one rule registry

The host now offers a launcher with three IBCS mini-games, all driven by a single shared rule registry (public/game/ibcs_rules.js, the in-code mirror of the master Do/Don't table):

Shared front-end helpers: ibcs_charts.js renders the IBCS chart glyphs and ibcs_stats.js posts a schema-complete rayfin-game-stats payload to the host.

What it does

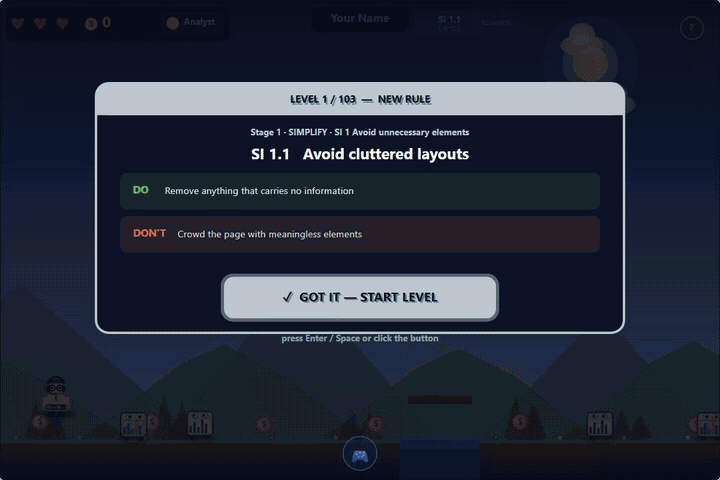

• One IBCS notation rule per level, taught by playing it rather than reading it
• Pie charts explode; the wrong chart for a time series has to be destroyed
• Progress and scores persist to Fabric SQL, so a team can run it as a shared exercise

Design docs

The complete rule set and the game design live in docs/:

Getting started

npm install
npm run dev

Open http://localhost:5173, sign in, and play. When a run ends (win or game over), the game posts its stats to the React host and the header shows "Run saved".

Mobile landscape & desktop

Each game renders to a fixed 900×600 canvas. On desktop and inside the Fabric <iframe> that native size is used; on phones and tablets the shared helper ibcs_mobile.js scales the canvas to fill the viewport (preserving its 3:2 ratio), shows a "rotate to landscape" hint in portrait, and — for the Rule Platformer — draws an on-screen gamepad whose buttons dispatch the same key events the game already handles, so touch and keyboard share one code path. The host iframe is sized responsively so the games fit mobile-landscape screens while still running full-size as a Rayfin app.

This app is fully self-contained — it depends only on the published @microsoft/rayfin-* packages (v1.33.x) from the public npm registry, so it installs and runs on its own without the project-rayfin monorepo.

How the migration works

The only change to the game file is in stats.publish(), which now also postMessages the payload to the parent window.

Stage progress & authentication

Players sign in with Entra ID through the Fabric brokered auth flow (RayfinAuthService), so every record is tied to a real identity. As the platformer clears each substage it posts a rayfin-stage-complete message; the host upserts it to a per-user StageProgress row, so the player's profile tracks which of the 35 substages / 7 SUCCESS stages are already completed (shown live in the header). On sign-in the host loads that progress back and pushes it into the game, so substage checkpoints unlock on any device the player signs in from.

Project structure

├── public/game/
│   ├── ibcs_trainer.html             # Rule Platformer (touch + keyboard)
│   ├── ibcs_swipe.html               # Chart Swipe
│   ├── ibcs_escape.html              # IBCS Escape Room
│   └── ibcs_mobile.js                # Responsive scaling + touch gamepad
├── rayfin/
│   ├── rayfin.yml                    # Fabric service config (auth + data + hosting)
│   └── data/
│       ├── GameStats.ts              # One row per play-through
│       ├── StageProgress.ts          # One row per completed substage (per user)
│       └── schema.ts                 # Registers GameStats + StageProgress
├── src/
│   ├── main.tsx                      # Entry point + Rayfin client bootstrap
│   ├── App.tsx                       # Routes and auth gate
│   ├── pages/GamePage.tsx            # Embeds the games + saves stats & progress
│   ├── hooks/AuthContext.tsx         # Auth context
│   ├── components/AuthPage.tsx       # Sign-in UI
│   └── services/                     # Auth + typed Rayfin client wiring
└── package.json

The data model

GameStats (rayfin/data/GameStats.ts) mirrors the game's stats.toJSON() payload (score, deaths by cause, coins, jumps, attacks, forms collected, final form, level reached, duration). StageProgress (rayfin/data/StageProgress.ts) records one row per IBCS substage a player has completed (substage/stage index, pillar, whether the whole stage was cleared). Both are scoped to the signed-in player via user_id (from the JWT sub claim), so a player only sees their own runs and progress.

Scripts

Fabric architecture

npx rayfin up provisions:

• Entra sign-in (Fabric identity)
• Fabric SQL database
• Static web app

Credits

Part of Fabric-Apps, MIT licensed.

Data

The IBCS notation standard. No external data.
