Airport IQ - Live Approach

The single, deployed Airport IQ Rayfin static-hosting app. A dark landing page (index.html) with two tiles that open the two 3D views. This app supersedes the older four-view apps/archive/airport-iq hub.

• Fabric item: Airport IQ — AppBackend <app-item-id> (workspace <your-workspace-id>, capacity prdsweden, Sweden Central)
• Live URL: <.webapp.fabricapps.net>
• Archive copy: Airport IQ - Archive (<archive-item-id>, <.webapp.fabricapps.net>) — a superseded snapshot, kept for reference.

What it does

• Live aircraft on approach from the public airplanes.live ADS-B API
• A 3D airport model built from real OpenStreetMap gate geometry
• Two views - the approach, and what is happening on the ground - behind one landing page

The two portions (views) and their data sources

The app bundles two independent 3D views. They use different engines and, importantly, different data sources — one is driven by a live external feed, the other by a pre-generated synthetic snapshot. All geometry (buildings, runways, gates) in both views comes from OpenStreetMap, filtered to the aerodrome boundary.

① Live Approach — data sources

Real-time, external, per-airport. Nothing here is stored aircraft data — it is polled live.

• Live aircraft (real-time): the public airplanes.live ADS-B REST API — GET https://api.airplanes.live/v2/point/{lat}/{lon}/180, polled every 15 s. Positions, altitude, ground-speed, track, hex and type come straight off the live feed and are driven through the approach/land/taxi/park choreography.
  • Offline fallback: if the API is unreachable, views/approach/data/live.json (a captured sample) is used so the view is never empty.
• Base map: OpenStreetMap raster tiles (https://tile.openstreetmap.org/{z}/{x}/{y}.png) — no Cesium Ion token, no terrain.
• Airport geometry: views/approach/data/<IATA>.geojson — extruded OSM building footprints, runways and gates, filtered to the airport's OSM aerodrome boundary. One file per airport: FRA MUC BER DUS AMS. DUS additionally carries OSM taxiway centrelines (kind:"taxiway" line features) that the arrival taxi router follows (see below).
• Airport manifest: views/approach/data/airports.json — the focus list + each airport's centre lat/lon and elevation (used to centre the globe / camera).

② Live-Ops — data sources

Fully synthetic and pre-generated — no live feed. The operational schedule is the Airport IQ operational model repositioned onto the airport's real OSM geometry.

• Operations snapshot: views/liveops/data/<AP>/snapshot.json — the synthetic schedule: gates, airlines, airports, flights, assignments, delays, conflicts, plus a meta time window. Its own meta.source records the provenance, e.g. "Airport IQ operational model repositioned onto Düsseldorf OSM geometry (real gates)".
• Buildings: views/liveops/data/<AP>/buildings.json — OSM footprints, aerodrome-filtered.
• Runways: views/liveops/data/<AP>/runways.json — runway centrelines (two parallel runways per airport: DUS 05R/23L+05L/23R, BER 06L/24R+06R/24L).
• Available only for DUS and BER (the two airports for which the operational snapshot exists).

Data-source summary

Live Approach — behaviour & features

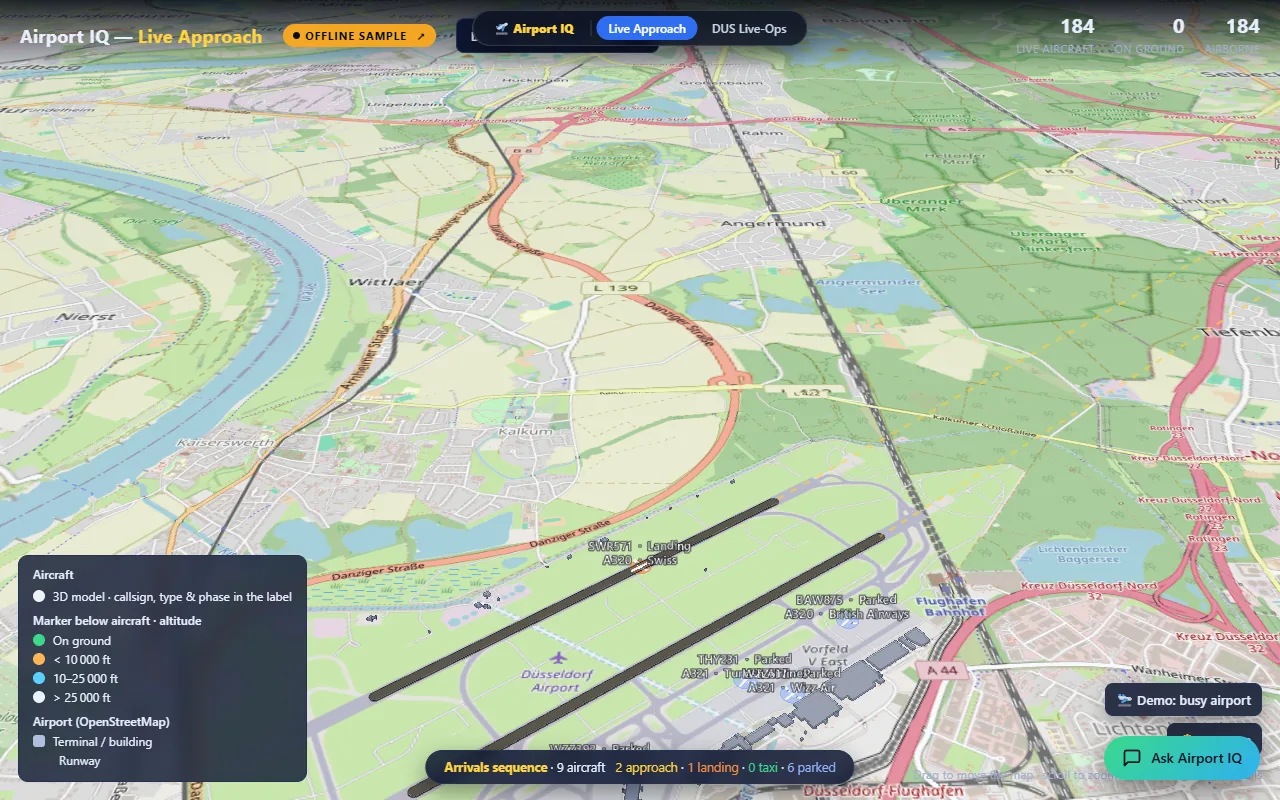

views/approach/index.html — a CesiumJS globe over OSM tiles, centred on one airport (dropdown / ?ap=), showing two layers of aircraft:

• Live ADS-B layer — every real aircraft within 180 nm of the airport, polled from airplanes.live every 15 s and dead-reckoned between polls. Coloured by altitude (on-ground / <10k / 10–25k / >25k ft), billboard sized by aircraft family.
• Arrivals choreography — a rolling sequence of arrivals that fly the full approach → land → taxi → park cycle, up to 12 at once.

Verifying the data is real (so you can check nothing is faked):

• The header "Live ADS-B ↗" badge is a link to the airplanes.live live map for the same airport (globe.airplanes.live/?lat&lon&zoom). The badge also shows the current data source at a glance: 🟢 green Live ADS-B = live feed, 🟠 amber Offline sample = the API was unreachable so the captured data/live.json sample is shown, 🔴 red No live data = neither source responded.
• Clicking any live aircraft opens an info box with a "Verify → airplanes.live ↗" link straight to that exact aircraft by its ICAO hex.

On-map labels (no click needed): each aircraft shows callsign + aircraft type (ICAO code prettified, e.g. A388→A380, B77W→777-300ER) + carrier (ICAO airline code → name, ~60 carriers; registration-style callsigns show no carrier rather than a wrong guess).

Movement realism: phase durations are distance-based at realistic ground speeds (approach ≈175 kt, taxi ≈47 km/h), so speed stays correct regardless of route length. Arrivals use two-runway ops (longest runway + a parallel sister) and realistic per-airline fleets for the synthetic callsign/type pairs.

Taxi routing (TAXI module): after landing, each arrival taxis to its stand along a building-avoiding, taxiway-following route — a visibility graph over building-corner nodes plus the OSM taxiway network (taxiway edges are discounted so Dijkstra prefers real centrelines). Validated on DUS: 0 building crossings, ~65 % of each path on real taxiways. Airports without taxiway data fall back to pure building-avoidance. Stands are pushed clear of every terminal footprint (parkFix) so no aircraft parks inside a building.

Camera: a floating 🖐 Pan map / ⟳ Orbit airport toggle switches between free globe panning and orbiting the focus airport; scroll to zoom from orbit down to the apron.

Live-Ops — behaviour & features

views/liveops/index.html — a Three.js apron scene for DUS/BER driven by the synthetic operations snapshot. Time-scrubber to see gate occupancy over the schedule window; gate pads coloured free / occupied / delayed / conflict; aircraft rendered as 3D meshes (fuselage sized by family, airline-coloured tail fin) that read correctly from any camera angle. Parked aircraft are placed nose-in on the apron, pushed clear of the terminal footprints (no fuselage buried in a pier). Optional auto-rotate; click a gate for flight/airline/route detail.

Build & deploy

cd apps/live-approach
npm run build:fabric        # assembles fabric-dist/ (tools/build-fabric.mjs)
npm run rayfin:up           # deploy to Fabric static hosting

In this workspace deploy via the shared Rayfin binary (the app's own npm install token is expired):

cd apps/live-approach
..\airport-3d\node_modules\.bin\rayfin.cmd up `
  --workspace-id <your-workspace-id> `
  --tenant ${FABRIC_TENANT_ID} -y

Rayfin does not set the Fabric item displayName from rayfin.yml; PATCH /items/{id} {displayName} separately if the tile name needs to change.

Fabric architecture

npx rayfin up provisions:

• Entra sign-in (Fabric identity)
• Static web app

Getting started

npm install
npm run serve
npx rayfin up --workspace-id <your-workspace-guid> --tenant <your-tenant-guid>

Any workspace or item id this app needs is read from the environment, with no default.

Project structure

media/          demo video, GIF and stills
rayfin/         deployment config - redirect URIs are loopback only
server/         backend service / relay
tools/          data pipeline and build helpers
views/

Scripts

Credits

Part of Fabric-Apps, MIT licensed.

Data

airplanes.live ADS-B and OpenStreetMap, both public feeds. No tenant data.
